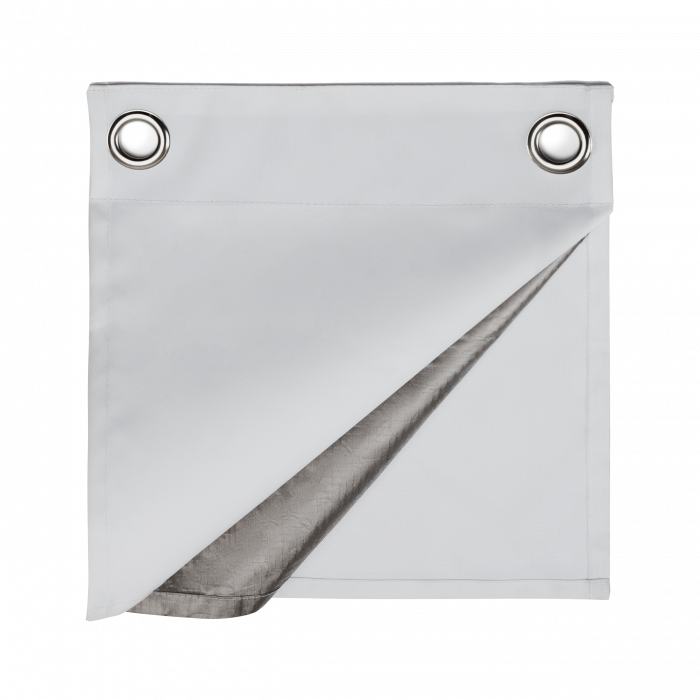

Shieldex® shielding curtains

EMI/RF/EMC Shielded Curtains

EMI/RF/EMC Shielded Curtains

Shieldex® shielding curtains offer effective shielding against electromagnetic waves and ensure reliable protection against signal interference. These curtains are ideal for use in large warehouses and enable regulated radio communication. They protect against signal interference and ensure regulated radio communication within the warehouse. Minimizing errors can increase efficiency and reduce costs. They are also ideal as RFID tunnels - for entry and exit. Invest in Shieldex curtains for improved communication without misinformation.

Advantages

  • Flexible adaptation to individual customer needs
  • Easy installation
  • Lightweight and durable construction
  • Made in Germany
  • Made by hand
  • Expert support to solve EMC challenges

Shielding performance

Average up to 95 dB from 0.3 to 18 GHz

Areas of application

  • Warehouse management
  • Room shielding
  • EMC applications

Download data sheet

View full details
  • Assembly

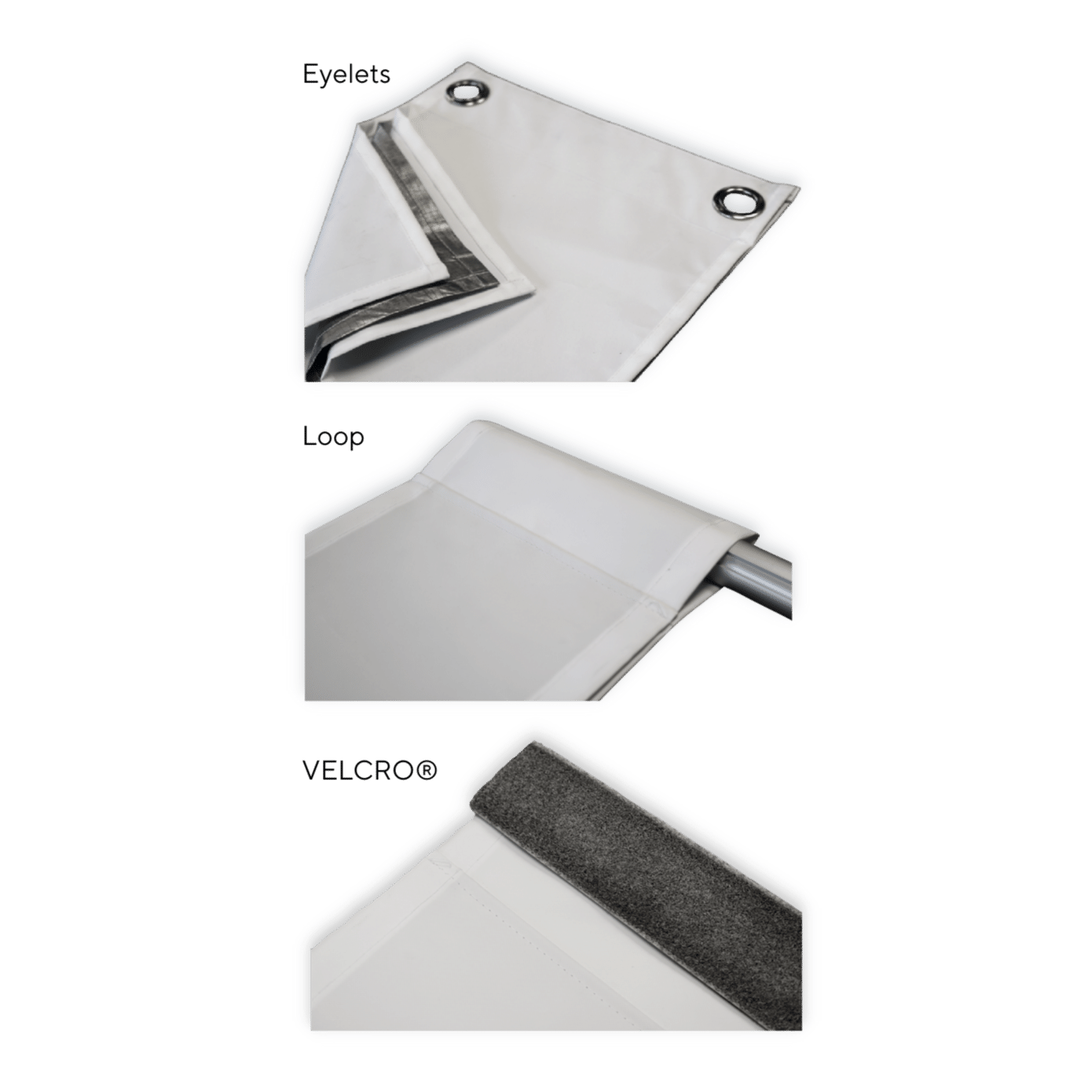

    Shieldex® shielding curtains offer a wide range of flexible installation options through the use of Loop, Eyelets and Shieldex® VELCRO® Hook and Loop. This allows the curtain to be installed in a variety of locations and for a variety of purposes. In warehouse management, every individual customer requirement can be met. Due to their textile structure, the Shieldex® shielding curtains provide strong, technical solutions and can hide different shapes and geometries. The assembly can be customized according to the specific needs of the customer. Slat curtains made from Shieldex material are already being used successfully.

  • Shielding walls

    Shieldex also offers textile shielding walls with a portable frame. These are particularly suitable for use in industry and in modern large warehouses. The frame allows for easy and flexible use in a wide variety of environments. The material combination of shielding Shieldex fabrics protects the area to be protected from electromagnetic waves.

    This is particularly important in sensitive industrial applications where interference with electronic devices must be avoided. These shielding walls can be used to create a safe and effective working environment.

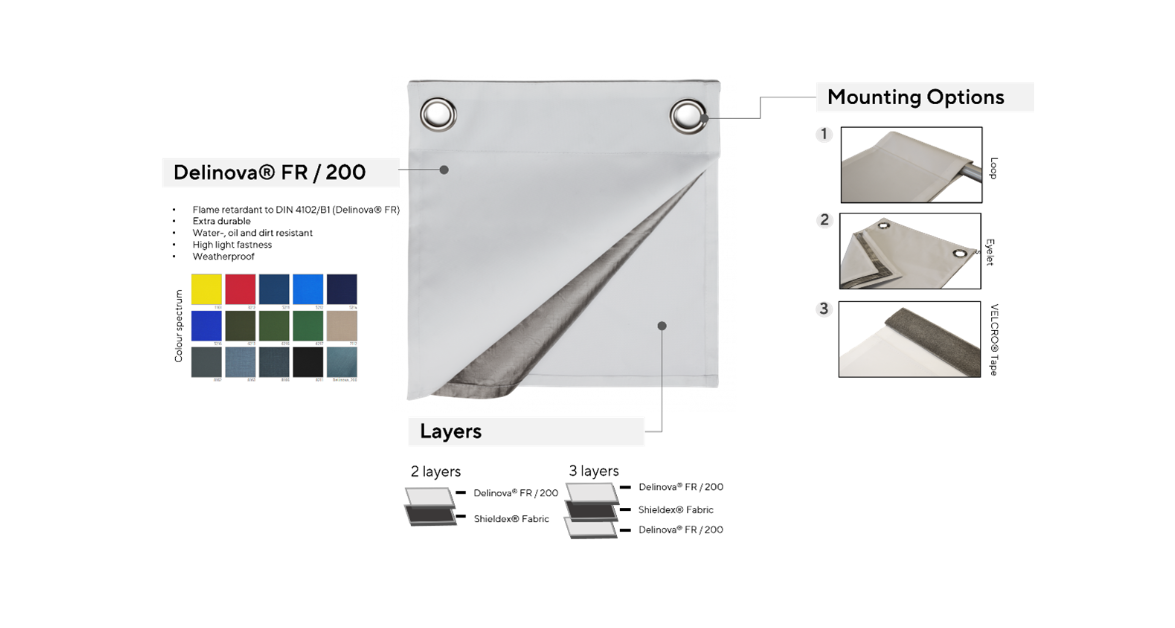

Material combination

Shieldex® shielding curtains are available in two standard options and can additionally be processed with a polyester (Delinova® FR/200) to protect the shielding fabric from dirt and external influences. This processing can occur on one or both sides of the curtain.

The versatility of the application areas of the shielding curtains is underlined by the design possibilities of Delinova® FR/200, which is available in various colors. Delinova® FR is flame-retardant according to DIN 4102/B1, durable, water-, oil- and dirt-repellent, colorfast, and weather-resistant.

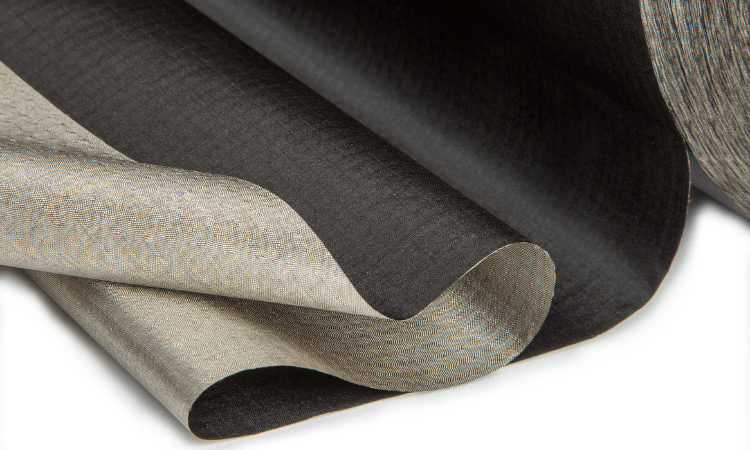

The combination of Delinova with Shieldex® fabrics like Nora Dell, Zell RS, Berlin RS allows us to create a product that is precisely tailored to the customer's needs and offers excellent shielding properties.

Contact

  • Colorful Shieldex

    The design of the Delinova® FR/200 is as versatile as the areas of application for the shielding curtains. This is available in different colors.

  • 2 layers

    Consisting of 2 layers.

    The first layer is made from Delinova® FR/200. The bottom layer consists of a flexible Shieldex textile.

  • 3 layers

    Consisting of 3 layers.

    The first & third layer is made from Delinova® FR/200. The middle layer consists of shielding Shieldex textile.
